SKWoptics 1.25-5x26IR AKBDC 780元
描述:
SKWoptics 1.25-5x26 AKBDC产品,是国外的AK用户或卡宾武器系列的用户量身定制的产品,。
分划板上针对射击距离从100 meters到450 meters均有不同的标识,以MOA为定位。
配合倒V型的双分划,可以进行近距离的快速瞄准。
skwoptics 1.25-5x26范围提供宽广的视野,具有成像明亮,清晰的观点,即使在黄昏。
产品可以在恶劣环境下使用,防水防震。

产品特点:
此瞄属于抗震型瞄具,可用于7.62或5.56类武器速射。
瞄具短小,易于在长瞄不便于携带的狭小空间内使用。
采用30MM管径,抗震性强,变倍精度高。
同时内部采用了全新的抗震设计,宽带镀膜,全手动弹道调节。
此瞄属于抗震型瞄具,可用于7.62或5.56类武器速射。
瞄具短小,易于在长瞄不便于携带的狭小空间内使用。
采用30MM管径,抗震性强,变倍精度高。
同时内部采用了全新的抗震设计,宽带镀膜,全手动弹道调节。
产品参数:
倍率:1.25-5
物镜口径:26mm
管径:30mm
长度:260mm
结构:一体
镀膜:绿色宽带镀膜
材料:铝
充氮:是
弹道调焦系统:低位手动调焦
咔嚓值:100码处1/4MO
倍率:1.25-5
物镜口径:26mm
管径:30mm
长度:260mm
结构:一体
镀膜:绿色宽带镀膜
材料:铝
充氮:是
弹道调焦系统:低位手动调焦
咔嚓值:100码处1/4MO
表面处理:二次氧化
分划:AKBDC分化
分划板:玻璃分化板
重量:
净重:485g
附件:
1)镜盖、干燥剂、镜布
适用枪的口径:从.17 到.30
分划:AKBDC分化
分划板:玻璃分化板
重量:
净重:485g
附件:
1)镜盖、干燥剂、镜布
适用枪的口径:从.17 到.30
hockproof, multi-coated lens .
Features:
- Light weight and compact
- Wide fields of view
- AK47 M43 bullet Tactical reticle
- It can be used from .17-.338 caliber,especially working good with AR/M4/AK
- Illuminated reticle allows you to see your target clearly in low-light conditions
- One-piece high grade aluminum tube
- Diopter Adjustment
- Easy Focusing Knob
- Nitrogen Filled,100%waterproof and fogproof
-

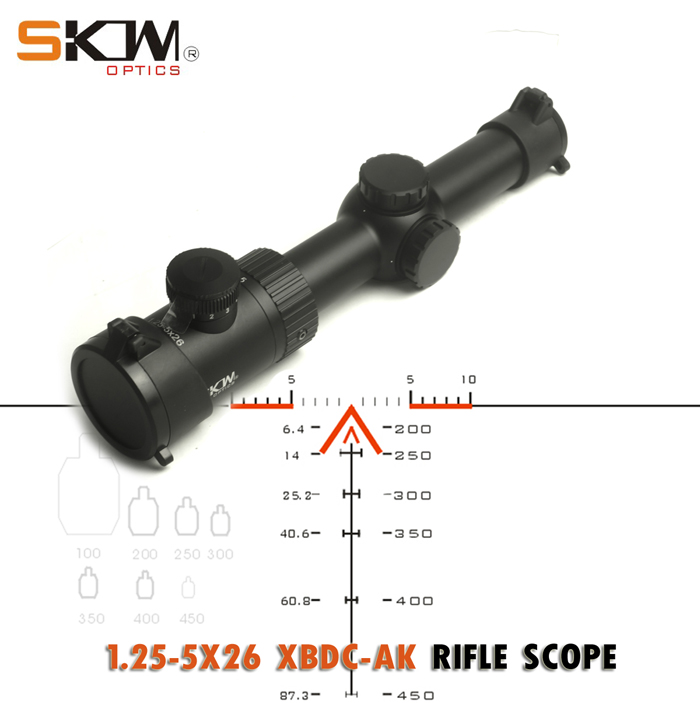

Specification:Patterns on reticle Description:The image belowThe red lines area, when the light is turned on, the lines change from black to red.There are two arrows for inverted "V". The largest arrow, the tip, corresponds to the 100-meter aiming point (no matter at any magnification); when it is 1.25x, it has the marking function of aiming, which is convenient for rapid short-range aiming.The smaller arrow (below the larger arrow) corresponds to the 200-meter aiming point (5x is valid).分划板右边,对应的,是100米到450米的蛋道高度瞄准标识;分划板的左边,是对应的MOA值,可以和蛋道表作参照。在200 meters, 250 meters, 300 meters, 350 meters, 400 meters, 450 meters, 各有不同长度的短线作瞄准,短线的高度,和对应距离人的肩膀宽度是一样的,当远处人的肩宽正好放在线中时,即表示敌人正好处于针对的距离。
本分划针对的蛋道参数(标准的卡拉什尼科夫M43 ):
Muzzle Velocity 2329fps(710M)
Bullet Weight 123g
Bullet Coefficient 0.275
Zero Range 100M
Angle 3 Deg
opticle Height axis 2.8 inch
Altitude 0
Wind 0
Pressure 29.9
Humidity 0RH
Referance Ammunition:
Standard M43 7.62X43
包装细节:
SKWoptics 1.25-5x26 瞄具一个;前后镜头翻盖各一付镜布一块
